SUPREME ALL TERRAIN EBIKING

The CYC Photon Kit is an electric bike conversion kit that efficiently transforms any traditional bicycle into an e-bike. It features a quiet motor, ensuring a smooth and unobtrusive ride. The kit is designed with responsive and nuanced torque sensing capabilities, providing an intuitive riding experience that adjusts to the cyclist's pedaling force. This addition enhances the bike’s performance on various terrains, including steep inclines. The kit is lightweight and compact, preserving the bike's original handling while adding electric power. It supports multiple battery sizes for customizable range options and is constructed to be durable and weather-resistant. Its sleek design integrates seamlessly with the bike, maintaining aesthetics without compromising functionality. Offering an affordable and accessible way to upgrade to an e-bike, the CYC Photon Kit is user-friendly, with clear installation instructions, making it ideal for DIY enthusiasts.

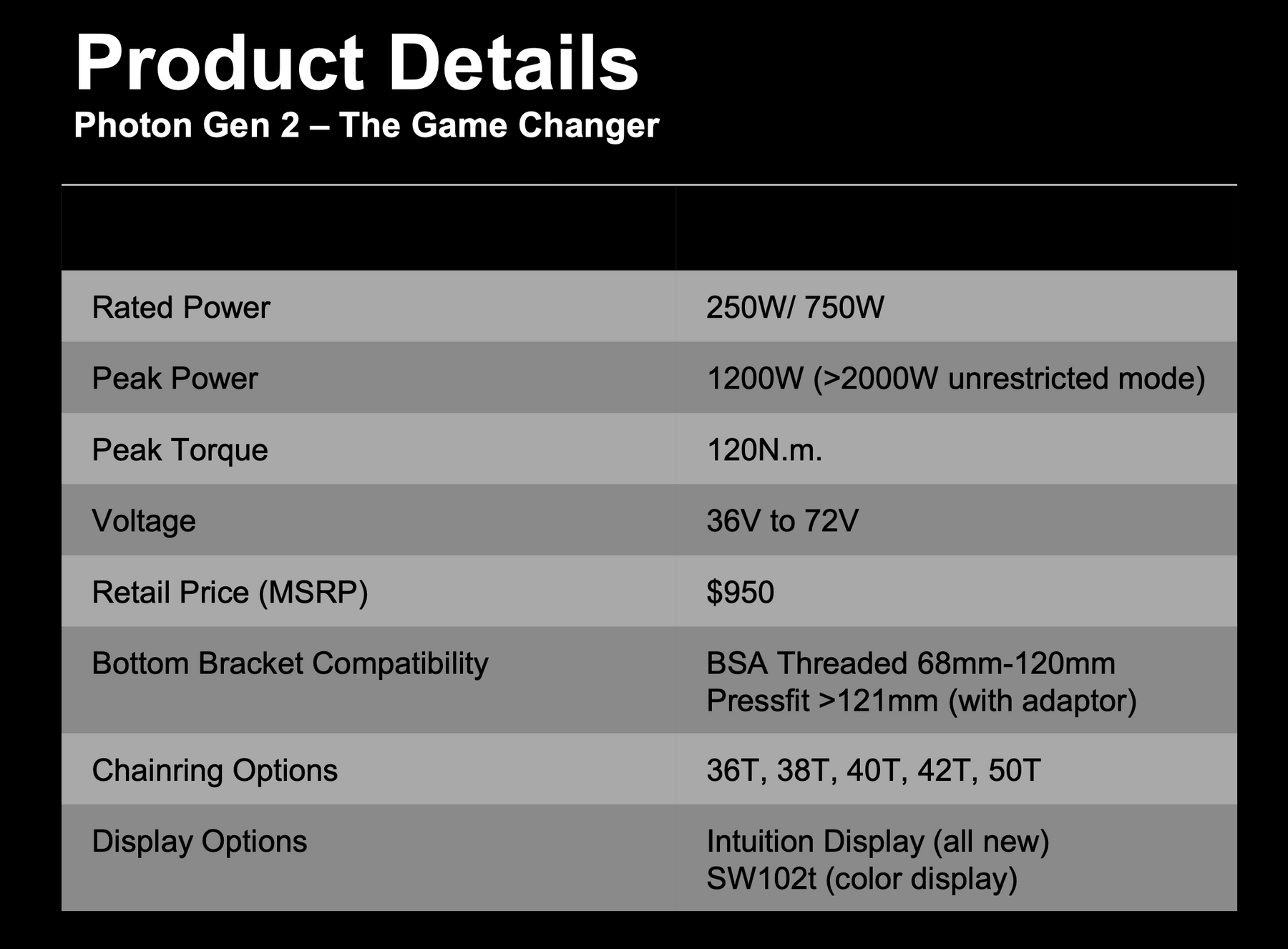

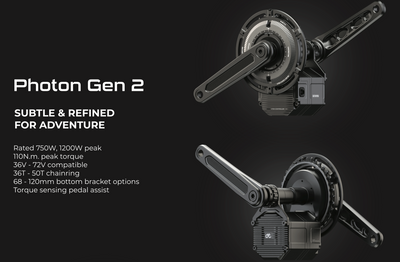

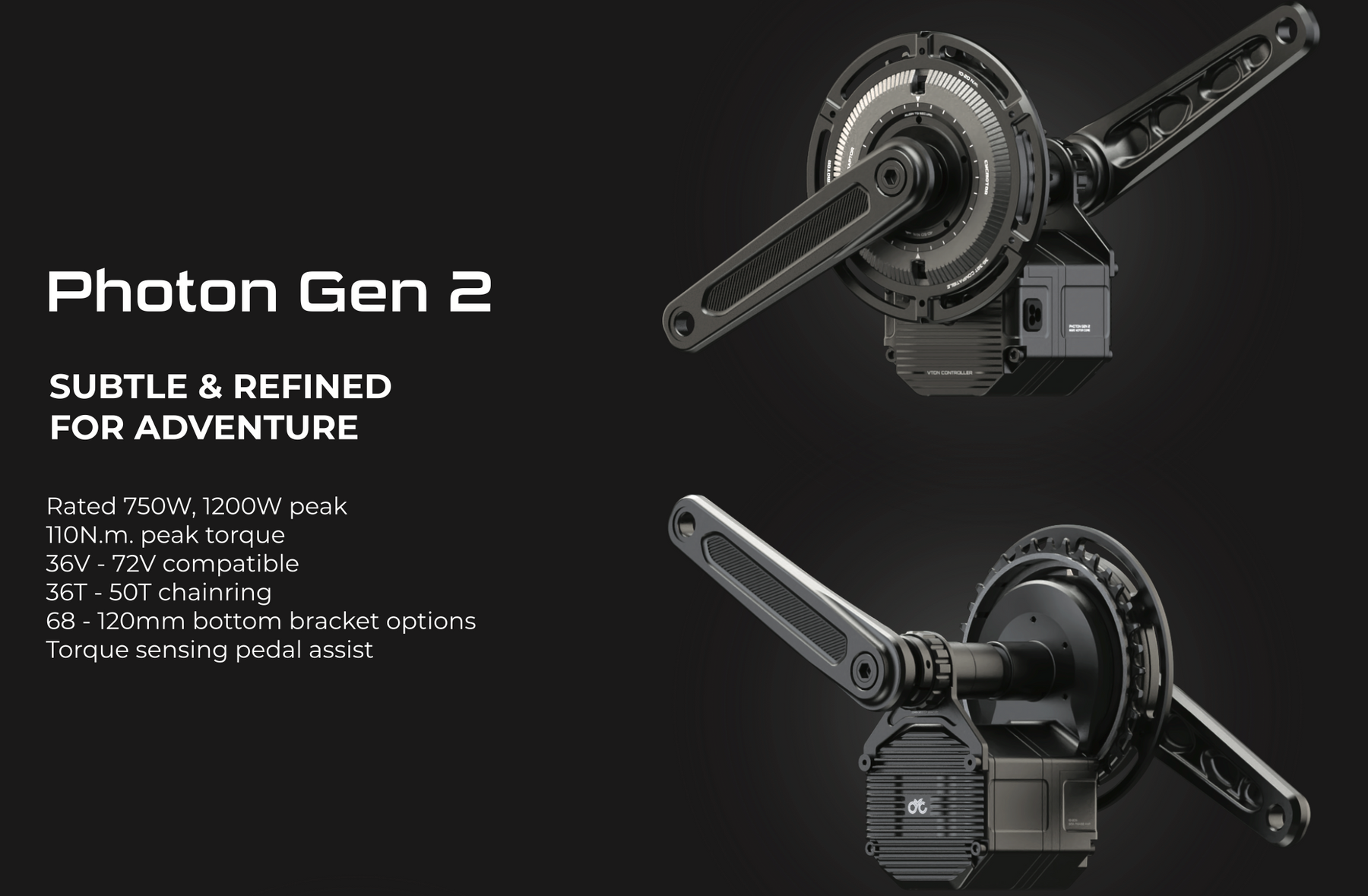

Specifications

  • 250W / 750W- FIRMWARE VERSION AVAILABLE
  • 110N.m.- PEAK TORQUE
  • 3.2KG- WEIGHT WITHOUT CRANKS
  • 34-50T- CHAINRING OPTIONS
  • 68-120MM- BOTTOM BRACKET OPTIONS



CYC RIDE CONTROL APP for X-Series Controllers

The CYC RIDE CONTROL app is the X1 PRO and the X1 Stealth's configuration system. This is where you will customize your experience & monitor your performance.
The app is connected to your controller via Bluetooth & will allow you to set up your system & change parameters according to your preference.

The CYC RIDE CONTROL app allows you to do multiple things:

  1. Set up your desired power output's for 2 different modes
  2. Customize your parameters for pedal assist, throttle performance, & gear preferences
  3. Configure your torque sensor
  4. Monitor your performance
  5. Set up your e-bike battery & peripherals
  6. See warnings & clear errors

This app is needed to set up a few things to get started such as your regions legal limits, your battery voltage, & wheel diameter. You will also need the app to clear any warnings or errors that may occur.

Next-Gen Photon Mid-Drive Motor: Major Upgrades Explained!

Sold out

Order yours now!

PRE-ORDERS ONLY - (Early orders shipping late July)

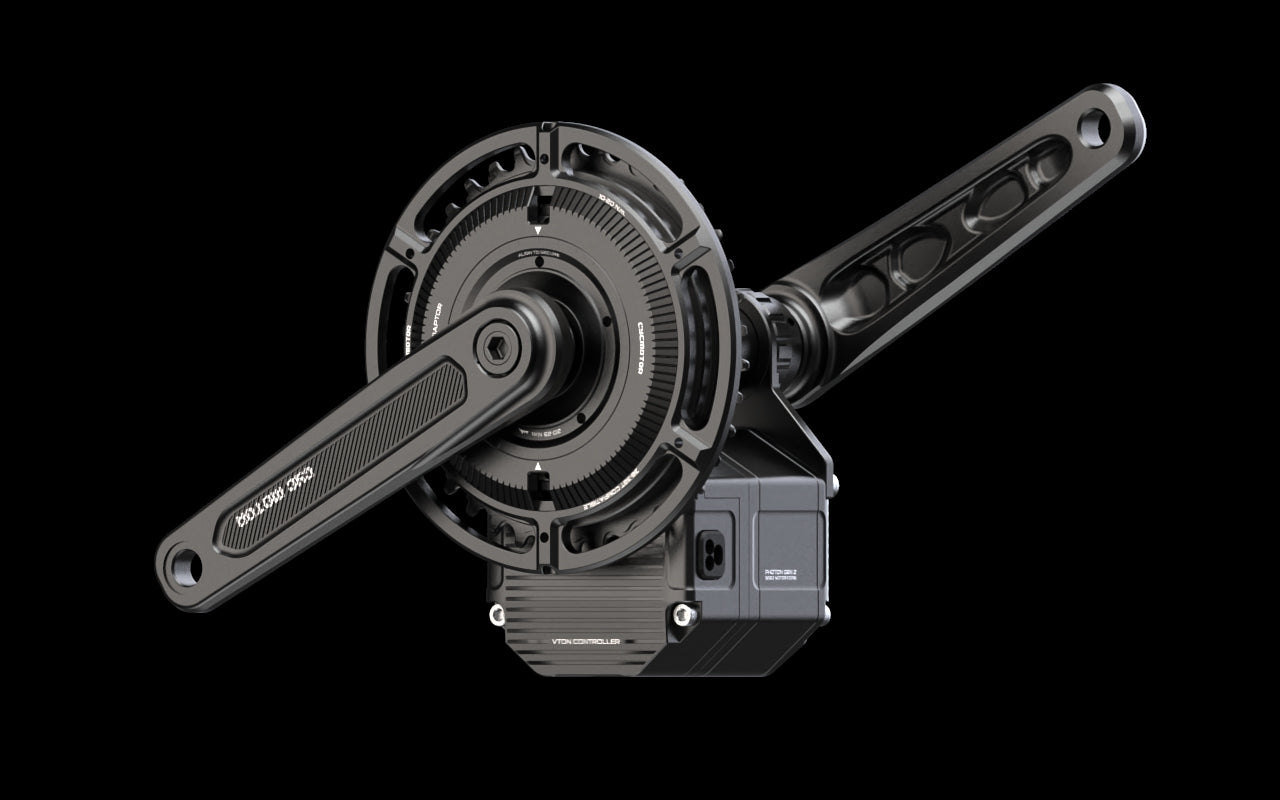

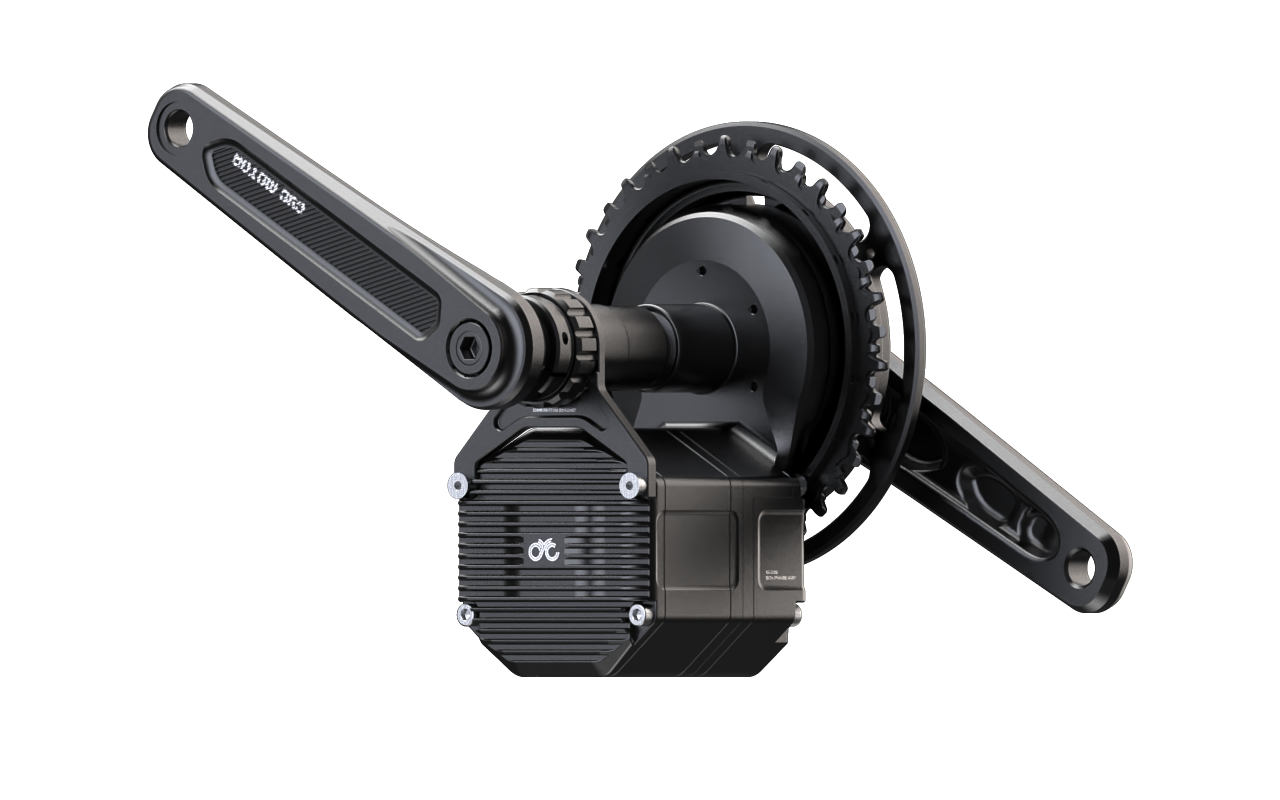

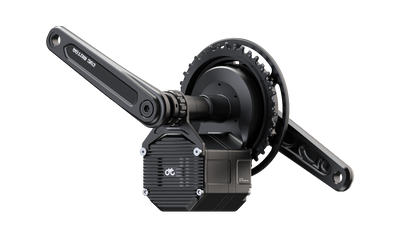

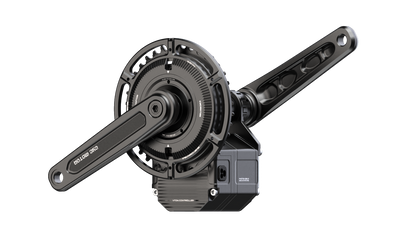

The CYC Photon mid-drive motor is a high-end/high-performance ebike conversion system that is the creation of CYC Motors in Hong Kong. The CYC Photon represents cutting-edge, state-of-the-art DIY mid-drive motors. The Photon sets the bar higher than it has ever been for DIY and factory mid-drive motors. It has a finely tuned response to meet the demands of the most discriminating cyclist or MTBer. On top of that, it sets a new precedent for power and quietness in a lightweight motor kit.

This motor preserves a perfect chain line on any bike and great ground clearance With its torque sensing and cadence sensing bottom bracket, it delivers power at the cadence you choose and senses when you crank up your effort and delivers more power on demand.

This versatile motor fits most frame types, including fat bikes and some carbon frames. It can be set up as a class 1, class 2, or class 3 ebike from 250 to 750 watts. Off-road modes go from 1,200 to over 2,000 watts.

It comes with everything you need except the battery, and we have those in 36v - 72v at 50 amps and from 500-watt hours to over 1300-watt-hours.

Included:

  1. Complete Motor, controller, & gear reduction assembly
  2. Bicycle chainring (38T, 40T & 50T with other options underway
  3. ISIS splined bottom bracket & spindle
  4. 160mm,165mm or 175mm crank arm set
  5. Gen 3 torque sensing freewheel module

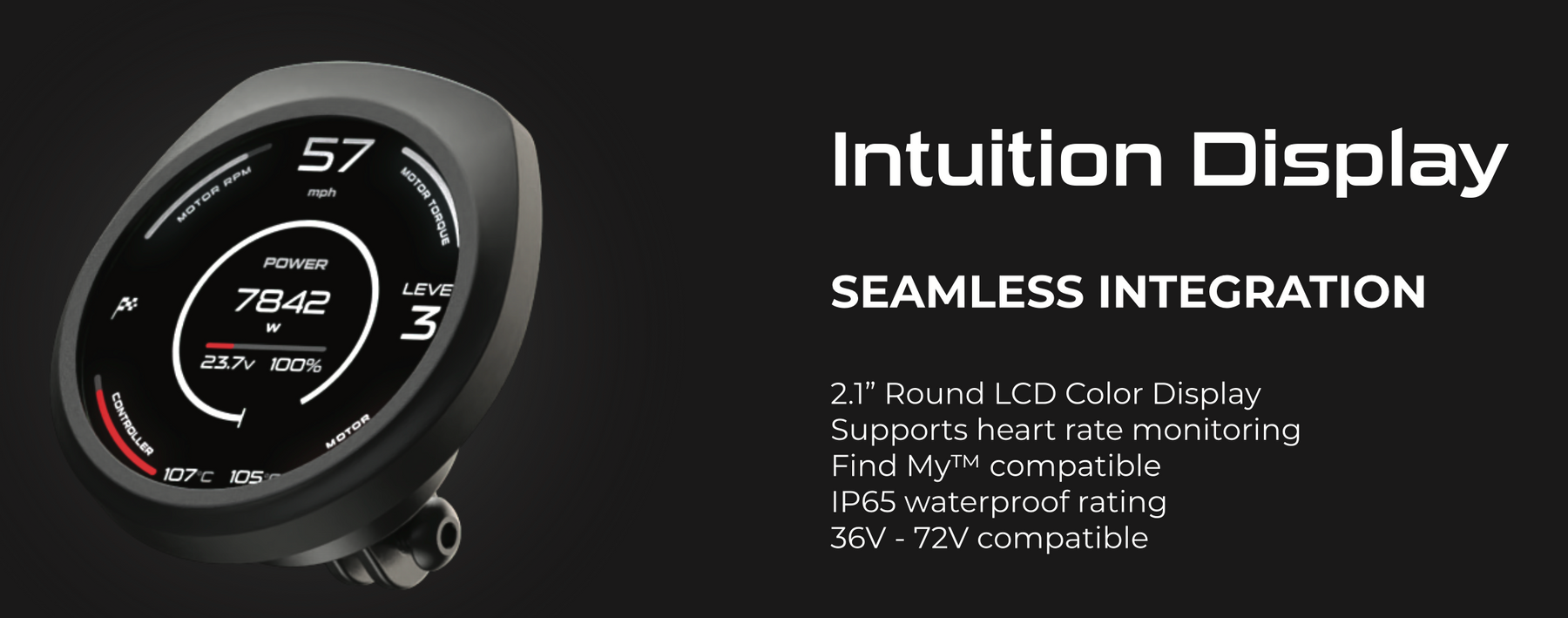

  6. New SW102T now in color or the latest Intuition Controller 36v-72v
  7. Waterproof wire cables
  8. Spacers for BB adaptability
  9. Thumb throttle or optional choice
  10. Magnetic speed sensor
  11. User manual

Documentation:

When selecting a battery for the Photon Motor, it's important to match the battery's performance to your needs. The SuperShark battery is ideal for those looking for a compact, long-range option that can handle up to 40 amps for short periods and 30 amps continuously. It's a great choice if you don't always ride at maximum throttle. However, if you consistently run the Photon Motor at its full 40-amp potential or you need more capacity, you'll want to consider options like the JumboShark, MiniShark, MegaMax, or MegaShark. These batteries are designed to deliver up to 50 amps of continuous power, ensuring your motor operates smoothly without overloading the battery.

For lights powered from the main battery, you may want to consider the CYC or EBC high-power light sets. They both have a handlebar mounted switch to turn the headlight on and off. The CYC headlights have two separate lights that each mount directly on the handlebars. The EBC Headlight includes low-beam with horizon cutoff, high-beam, and running lights and mounts on the front stem bolts freeing up handlebar space and not interfering with the ebike display. Both lights are brighter than most car headlights.

For a great 1x drivetrain, the ebike-rated Box Two and Box Three drivetrains are durable and affordable. Under motor power, you may still wear out the higher (smaller) gears on the rear sprocket. Fortunately, Electrify Bike Co. has arranged with Box to sell these as a set of 4 sprockets for just $20, so you can change them out when they start to slip.

NOTE: Electrify Bike Co. does the final assembly of CYC motor kits in the USA and we ship to all locations in North America. We do not ship to other countries including China and Hong Kong.



Note: Shipments will begin the last week in July and will be shipped first come, first served. Pre-orders will charge your credit card. If you change your mind before your motor ships, let us know and we will provide an immediate refund.
