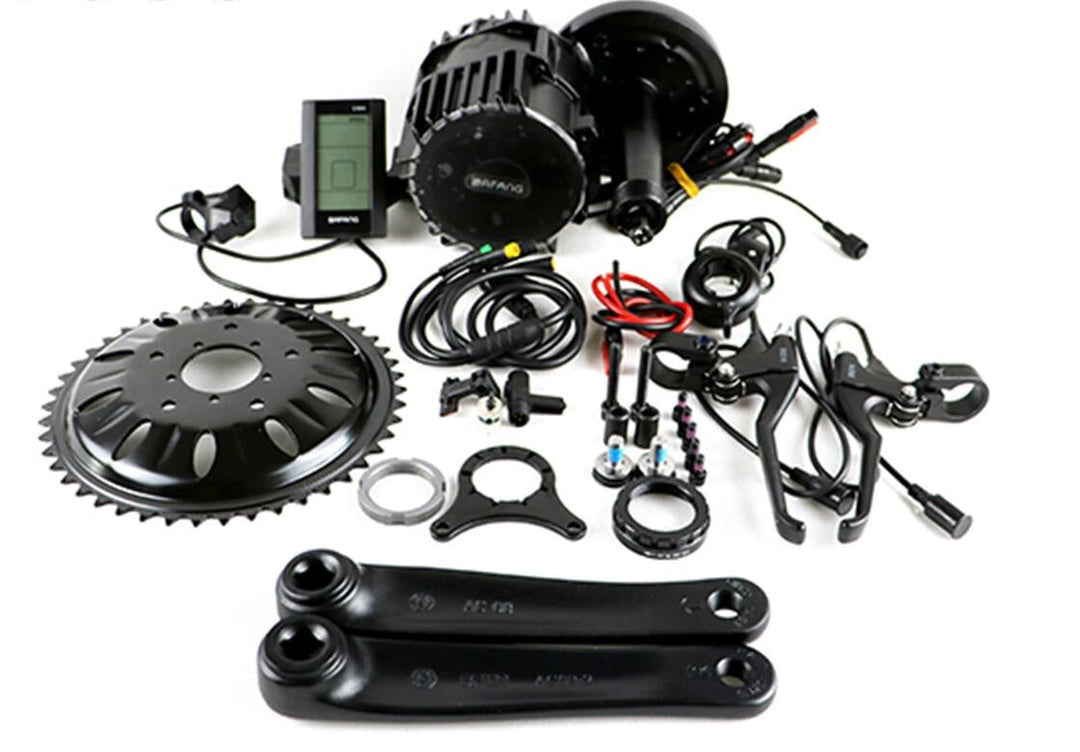

INCLUDED STANDARD ($166.00 Value):

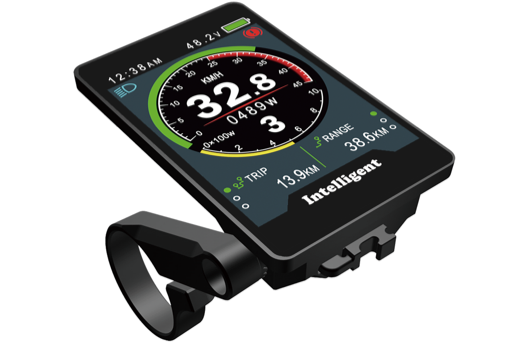

• 500S Display ($65.00 )
• 46T Chain Ring ($30.00)
• Crank Arms ($30.00)

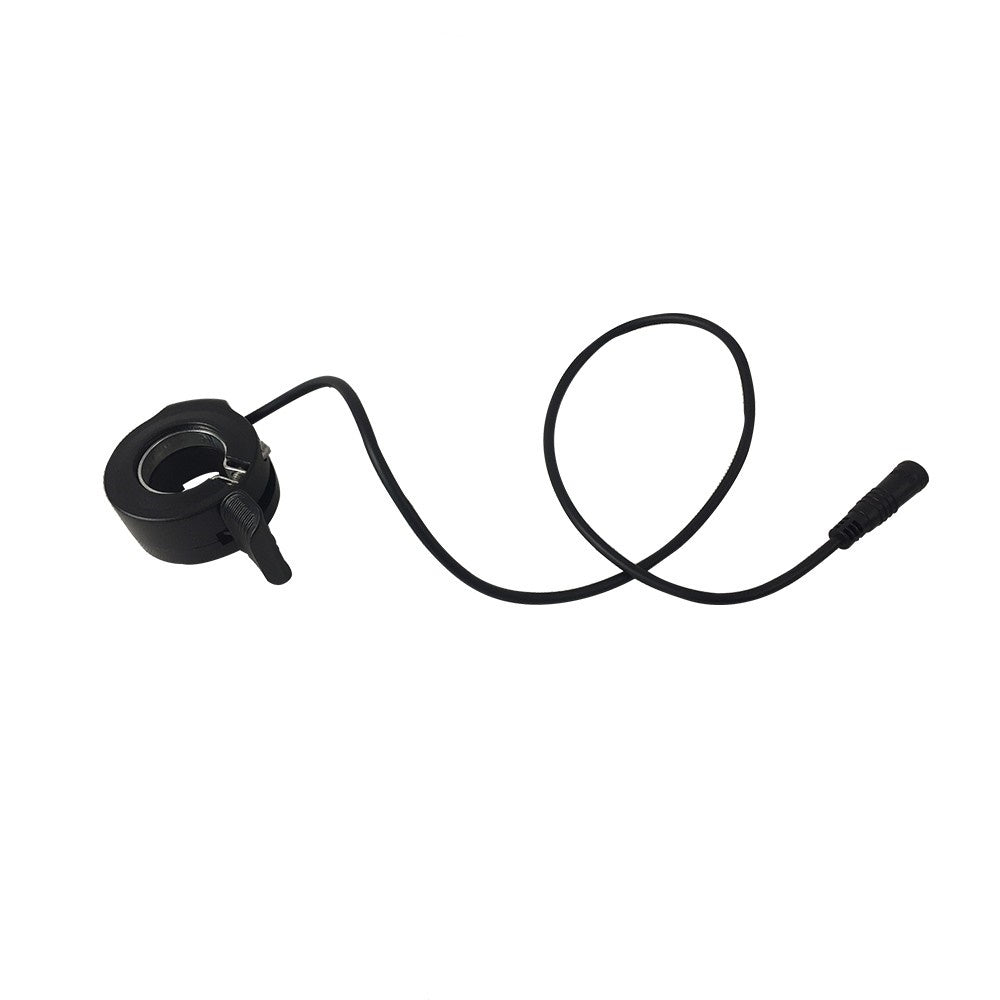

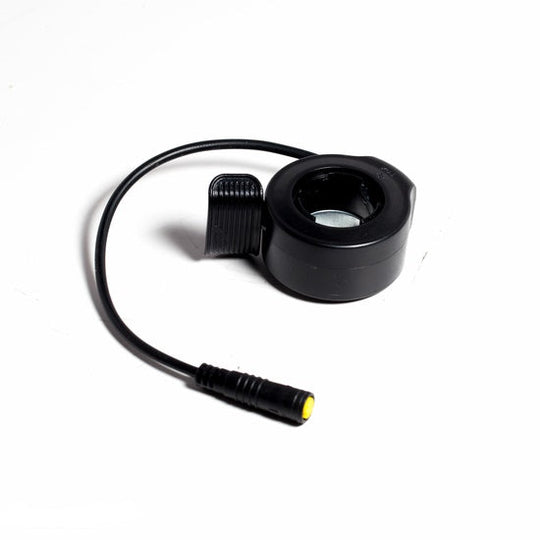

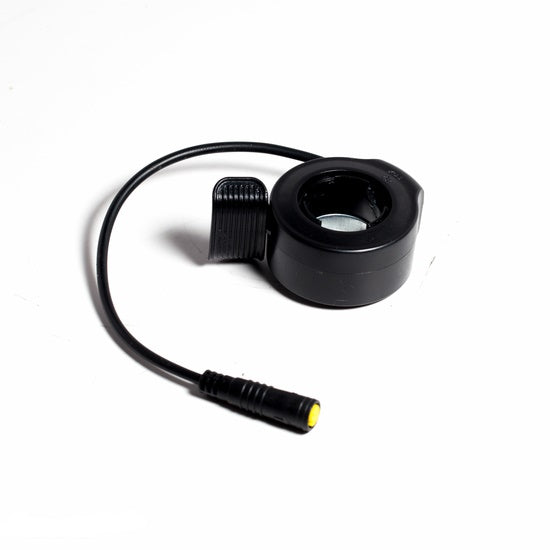

• Universal Thumb Throttle ($15.00)
• Electrify Bike Optimized Programming ($30.00)

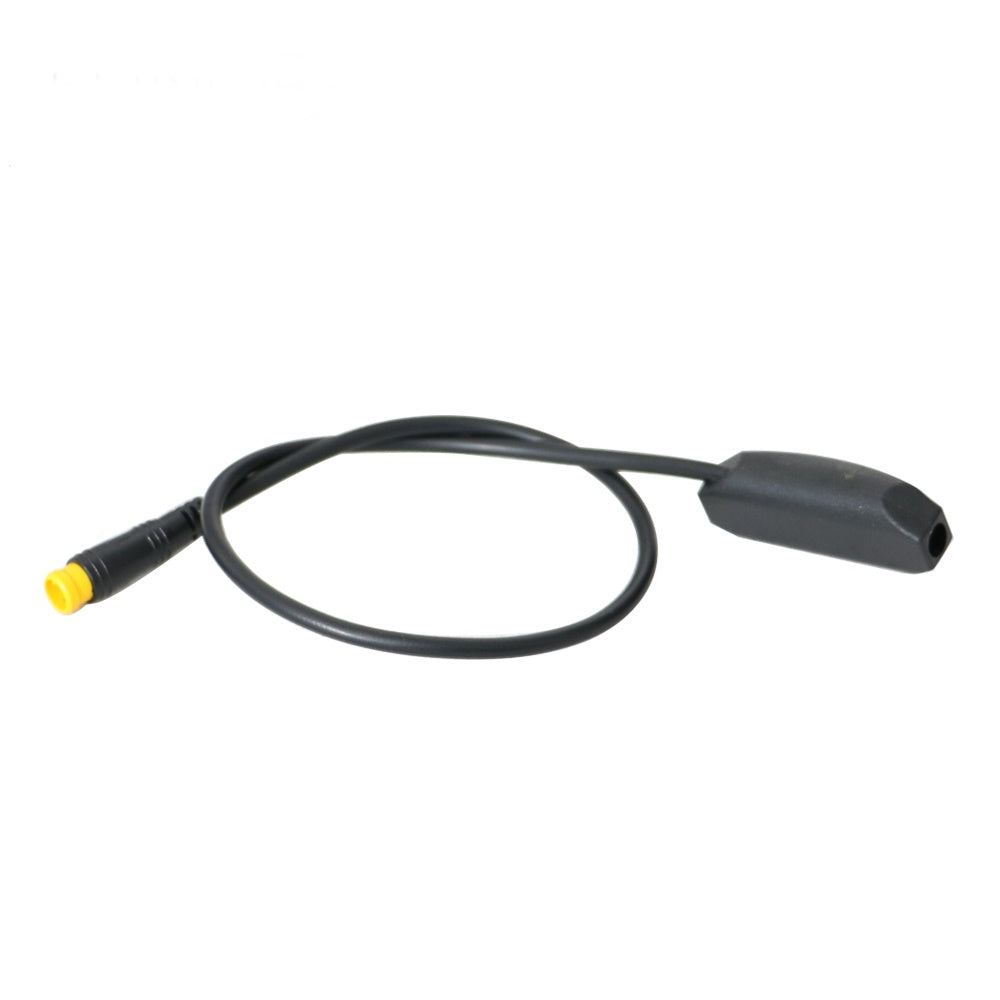

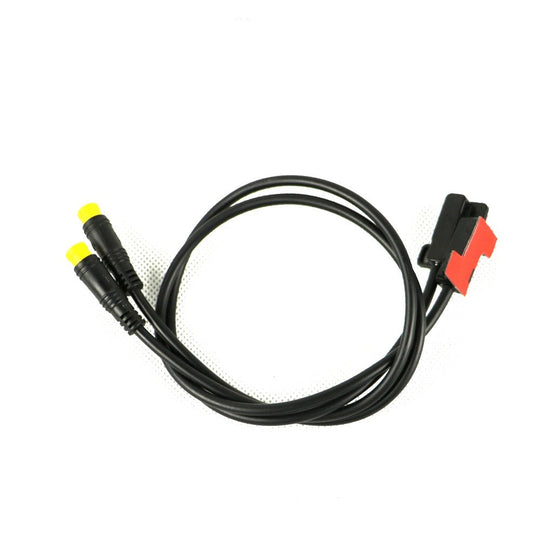

• Power Extension Cable ($6.00)

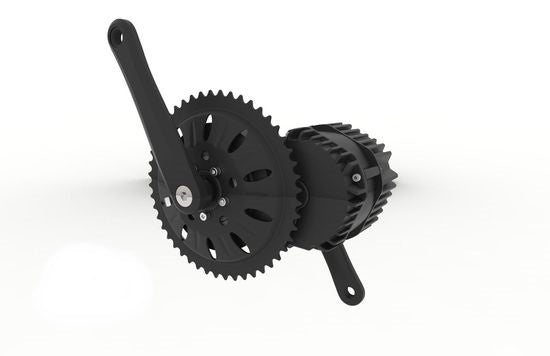

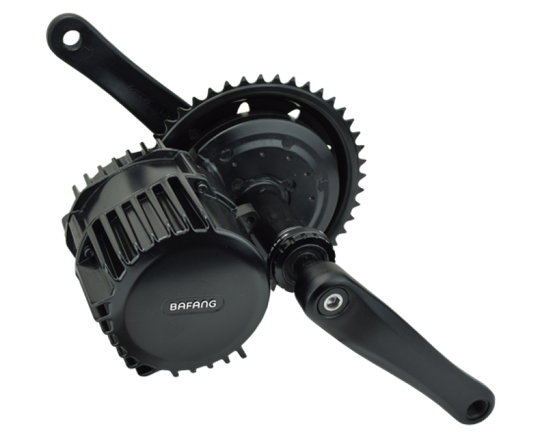

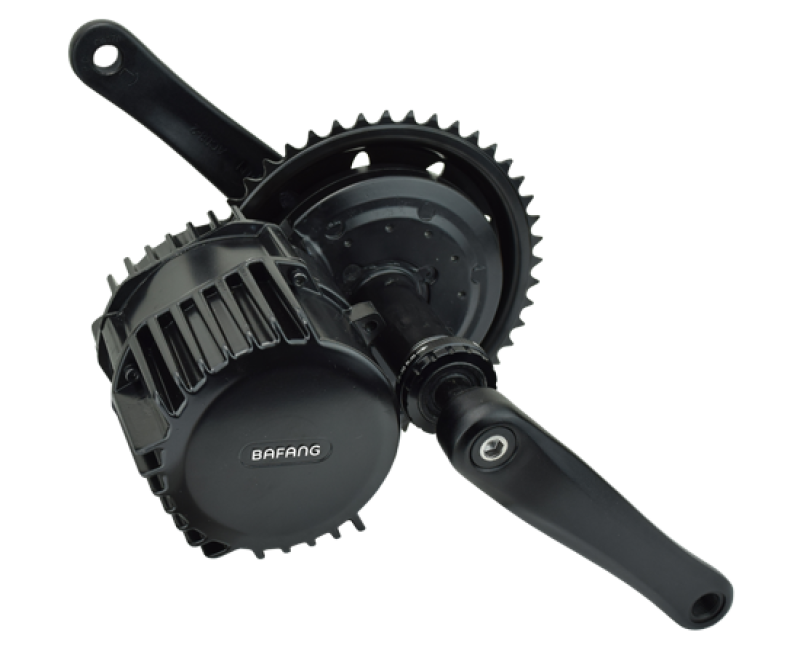

Why Bafang BBSHD 1000W Motor Kit?

The BBSHD is a 1000-watt beast of a motor. It is about 3.5lbs heavier than the BBS02 and delivers a peak power of over 1500 watts. Although weighing in at about 13lbs, this motor is super silent and has a massive torque of 160Nm. There are small cars with the same amount of torque.

Given its full power range, this motor is strictly for off-road use where motorized vehicles are allowed. However, it can be programmed to be street and bike trail legal if you want to use it everywhere because you like this motor’s ruggedness and reliability. For those that want street-legal and full power, we also sell a unique display, the Eggrider V2, that can reprogram the motor on the fly for a street-legal, power-limited mode and an off-rode, full-power mode depending on where you are riding.

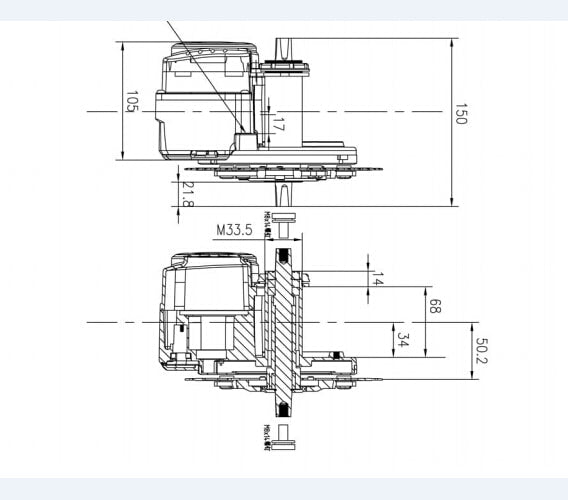

In addition to the 68/73mm bottom bracket sizes that the BBS02 fits, the BBSHD also comes in 100mm and 120mm BB widths. These are typically used exclusively on fat bikes. The BBSHD is always an excellent choice for a fat bike because they are heavier and often used in sand, snow, or steep terrain. However, The 100mm also bridges the gap to 83-92mm bottom brackets. These are popular BB widths for high-end mountain bikes. To fit the BBSHD, these typically require press-fit adapters and 8-16mm of bottom bracket spacers, and these conversions are solid. When possible, the spacers should go on the non-drive side to help equalize the Q-factor. Exceptions are when some spacing is necessary on the drive side so that the “gear reduction housing” clears the right chain stay. As with the BBS02, with the new Lekkie adapter, you can install the 68mm version of the BBSHD on BB86/92.
